เครื่องวัดอัตราการไหลของของเหลว Ultrasonic Flow Module / LRF-2000M

Product Description

LRF-2000M, the ultrasonic flow module, is best choice for system integration or network measurement because of its small volume, light weight, easy operation, power function and lowest cost.

Features

Powerful Functions
Current output: 4-20mA, one channel, can be used for flow/heat transmitter;
OCT output: two channel, can be used for flow / heat switch;
Current input: 4-20mA, three channel, can be used for data collector;
Tri-wire resistance signal input (PT100): two channel, can be used for calorimeter.

Far transmission distance
Connect flow/heat module and secondary meter through RS-485 interface, transmission distance up to 1000m .
Solve the problems of high cost of special cable, poor anti-interference, short transmission distance etc.

Wide measuring range

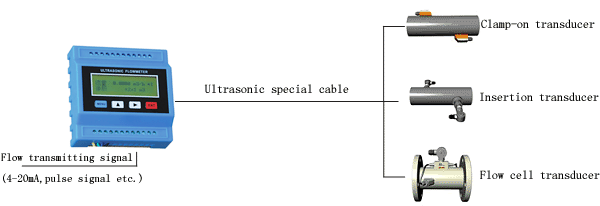

Several types transducer for selection, pipe size from DN 15mm to DN 6000mm

High Accuracy measuring
Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%

General Specification

Optional Transduers		Model	Measuring Range	Liquid Temperature	Accuracy
Clamp-on	TS-2(small size)	LRF-2000MNB1	DN15 -100mm	0C ° ∼ 90C °	Flow±1% Heat±2%
	TM-1(medium size)	LRF-2000MNB2	DN50 -1000mm
	TL-1(large size)	LRF-2000MNB3	DN300 -6000mm
High-tem clamp-on	THS-1(small size)	LRF-2000MNB4	DN15 -100mm	0C ° ∼ 160C °
	THM-1(medium size)	LRF-2000MNB5	DN300 -1000mm
Insertion	TC-1(standard)	LRF-2000MNC1	DN80 -6000mm	0C ° ∼ 160C °
	TLC-2(lengthen)	LRF-2000MNC2
Prover Section	Prover Section	LRF-2000MNG	DN15 -1000mm (see appendix 2)	0C ° ∼ 160C °	Flow±0.5%

Power Supply	Primary meter: 8-36VDC , Secondary meter: AC220V or DC24V
Input	3 channel 4-20mA analog input, 2 channel Tri-wire resistance signal input (PT100)
Output	Isolation RS-232/RS-485 output, 2 channel isolation OCT output 1 channel isolation 4-20mA output (two-wire system)
Communication Protocols	Compatible with MODBUS, METER-BUS protocol, Fuji extended protocol and general water meter protocol.
